Supermicro RAM Compatibility: How to Select the Right Memory Modules
Building and maintaining high-performance servers requires absolute hardware precision. For system builders and IT engineers deploying Supermicro platforms, memory selection directly influences system stability, compute throughput, and uptime. Choosing the wrong memory module can cause boot failures, uncorrectable bus errors, or steep latency penalties that compromise your entire infrastructure. Achieving flawless supermicro ram compatibility demands a clear understanding of DIMM architectures, generation-specific memory channels, rank configurations, and population rules.
Selecting the correct modules protects your investment and ensures that your server hardware operates at its rated capability. At RAM Exchange, we help engineering teams source, test, and deploy verified memory configurations designed to meet rigorous enterprise standards.

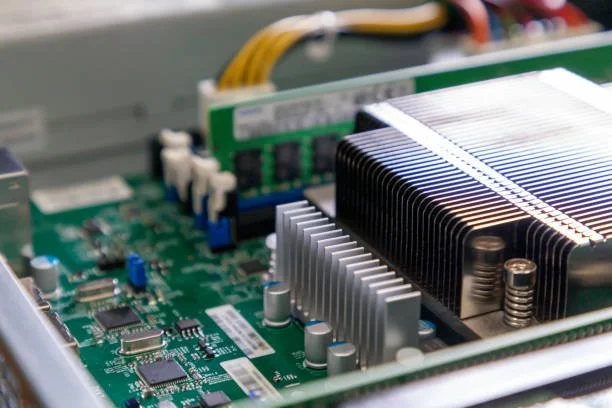

The Foundation of Supermicro RAM Compatibility: Memory Types and Form Factors
Supermicro motherboards support diverse server architectures, ranging from single-socket edge compute nodes to quad-socket enterprise virtualization platforms. Selecting compatible memory begins with identifying the correct physical and electrical DIMM type.
Unbuffered ECC (ECC UDIMM)
Unbuffered ECC memory connects directly to the CPU memory controller without an intermediary register buffer.
Where it is used: Entry-level Supermicro servers, single-socket Intel Xeon E-series boards, and select AMD EPYC 4004 or embedded platforms.
Key limitation: UDIMMs support lower capacities per channel (typically 16GB to 32GB modules) and cannot scale to high-density multi-socket configurations.
Registered ECC (RDIMM)
Registered DIMMs include an onboard register between the DRAM chips and the system memory controller. This register buffers control and address lines, reducing electrical loading on the processor.
Where it is used: Mainstream dual-socket Intel Xeon Scalable (X11, X12, X13 series) and AMD EPYC (H11, H12, H13 series) motherboards.
Key limitation: RDIMMs introduce one clock cycle of latency compared to unbuffered memory, but they provide crucial electrical stability and higher capacity scaling.
Load-Reduced ECC (LRDIMM)
Load-Reduced DIMMs take buffering a step further by placing a distributed memory buffer on both control lines and data lines.
Where it is used: High-density virtualization hosts and large database servers running DDR3 and DDR4 generations where memory slots must handle maximum capacity.
Key limitation: LRDIMMs consume slightly more power and carry higher initial procurement costs, but they allow running multiple high-capacity modules per channel without severe speed drops.
3DS RDIMM (Three-Dimensional Stacking)
Three-Dimensional Stacking uses Through-Silicon Via (TSV) technology to stack multiple DRAM dies vertically within a single physical chip package.
Where it is used: Modern DDR4 and DDR5 Supermicro systems requiring ultra-dense modules such as 128GB, 256GB, and 512GB DIMMs.
Key limitation: Requires specific BIOS and processor microcode support.
The Golden Compatibility Rule: Never Mix DIMM Types
Supermicro motherboards strictly prohibit mixing different memory types. You cannot combine RDIMMs with LRDIMMs, nor can you mix ECC UDIMMs with registered modules in the same system. Doing so causes memory initialization errors and halts the Power-On Self-Test (POST) process.
Processor Generations and Memory Channel Architecture
Achieving true supermicro ram compatibility requires aligning your module count with the integrated memory controller (IMC) of your specific processor. Modern server CPUs distribute memory traffic across multiple independent channels to achieve high data transfer rates.
Intel Xeon Scalable Architectures
Xeon Scalable Gen 1 & Gen 2 (Skylake-SP / Cascade Lake): 6 memory channels per socket. Optimal performance requires 6 or 12 DIMMs per CPU.
Xeon Scalable Gen 3 (Ice Lake): 8 memory channels per socket using DDR4 memory. Optimal performance requires 8 or 16 DIMMs per CPU.
Xeon Scalable Gen 4 & Gen 5 (Sapphire Rapids / Emerald Rapids): 8 memory channels per socket using high-speed DDR5 memory.
AMD EPYC Architectures
AMD EPYC 7001, 7002, & 7003 Series (Naples, Rome, Milan): 8 memory channels per socket using DDR4 memory.
AMD EPYC 9004 Series (Genoa, Bergamo, Siena): Up to 12 memory channels per socket using DDR5 memory.
Balanced Channel Layout Principle
To achieve 100 percent memory bandwidth and activate full multi-channel interleaving, populate every memory channel symmetrically:
Populate Channel A (Slot 1)
Populate Channel B (Slot 1)
Populate Channel C (Slot 1)
Populate Channel D (Slot 1)
Populate Channel E (Slot 1)
Populate Channel F (Slot 1)
Populate Channel G (Slot 1)
Populate Channel H (Slot 1)
When deploying hardware, system builders must avoid unpopulated channels. An eight-channel AMD EPYC or Intel Ice Lake server populated with only two memory modules operates at just 25 percent of its potential memory bandwidth.
A comprehensive research study on datacenter hardware reliability examined memory errors across tens of thousands of production servers. The researchers revealed that over 8 percent of active DIMMs suffer from correctable or uncorrectable errors annually, with DRAM faults representing the most frequent cause of server hardware service calls. Deploying high-grade, fully compatible ECC memory directly mitigates these costly hardware interrupts.
To simplify procurement and avoid configuration errors, RAM Exchange works closely with system integrators to identify exact motherboard requirements and build fully verified memory configurations.
Understanding Memory Ranks and DIMM Population Rules
Memory rank refers to a 64-bit wide block of DRAM chips on a memory module (72 bits wide when including ECC parity). Understanding rank structure prevents unexpected speed degradation and configuration limits.
Single-Rank (1R), Dual-Rank (2R), Quad-Rank (4R), and Octal-Rank (8R)
1R and 2R DIMMs: Provide lower electrical capacitance on the memory bus. They allow memory controllers to run at maximum rated clock speeds.
4R and 8R DIMMs: High-density modules often implement quad or octal ranks. However, memory controllers enforce limits on the total number of physical ranks they can address across a single channel.
DIMMs Per Channel (DPC) Rules
Supermicro motherboards generally provide either one slot per channel (1 DPC) or two slots per channel (2 DPC).
1 DPC Configurations: Yield the highest clock frequencies and lowest latency profiles.
2 DPC Configurations: Maximize overall gigabyte capacity, but they increase electrical loading. On DDR4 platforms, populating the second slot of a channel can force the memory controller to downclock speeds (such as dropping from 3200 MT/s to 2933 MT/s or 2666 MT/s).
Supermicro Color-Coded Slot Sequence
Supermicro motherboards color-code their DIMM slots to guide correct physical installation. Always follow this exact order:
Populate all Blue slots first: These represent the primary physical slot of each memory channel (Slot 1 of Channel A, B, C, D, and so on).
Populate all Black slots second: These represent the secondary slot of each channel (Slot 2 of Channel A, B, C, D, and so on).
Maintain socket symmetry: Ensure identical module counts, capacities, and rank structures across CPU Socket 0 and CPU Socket 1.
Skipping blue slots or installing modules out of sequence disrupts channel interleaving and often results in unallocated RAM during system startup.
Key Factors in Selecting Compatible DIMMs
To ensure long-term server memory installation success, evaluate these four critical technical variables before sourcing your hardware:
1. Operating Voltage
DDR3: 1.5V standard, 1.35V low-voltage (DDR3L).
DDR4: 1.2V standard enterprise operating voltage.
DDR5: 1.1V standard, utilizing an integrated onboard Power Management IC (PMIC) rather than relying exclusively on motherboard voltage regulators.
Never force incompatible voltage levels across identical generations, as this can degrade memory controllers over time.
2. Speed (MT/s) and Timing Synchronization
While Supermicro motherboards can automatically adjust memory clock speeds to match the slowest installed module, running mismatched speeds or mixed CAS latencies forces the memory controller into conservative timing configurations. Always match frequencies (such as 2666 MT/s, 2933 MT/s, 3200 MT/s, or 4800 MT/s) and timing profiles across all installed banks.
3. Thermal Design and Airflow Considerations
High-density 64GB, 128GB, and 256GB modules generate substantial heat under continuous enterprise computing loads. In compact 1U and 2U rackmount Supermicro chassis, dense memory banks require active cooling. Verify that your server fan speed profiles and chassis air shrouds deliver targeted airflow across all DIMM heat spreaders to prevent thermal throttling.
For engineering teams sourcing high-density, rigorously tested modules across legacy and modern platforms, explore the full catalog of RAM Exchange products.
Troubleshooting Supermicro Memory Configuration and POST Errors
When newly installed memory fails to initialize on a Supermicro motherboard, follow this systematic diagnostic approach:
The Systematic Diagnostic Workflow
Step 1: Check BMC / IPMI Event Logs: Review the System Event Log (SEL) for specific ECC alarms and multi-bit error reports.
Step 2: Inspect Physical Seating: Verify that the DIMM retaining clips lock firmly and completely into both alignment notches.
Step 3: Check Slot Sequencing: Confirm that blue primary slots contain memory before black secondary slots receive modules.
Step 4: Update System BIOS: Refresh the motherboard firmware and microcode to support newer DRAM chip revisions and higher module densities.
Inspect IPMI System Event Logs (SEL)
Supermicro Baseboard Management Controllers (BMC) feature intelligent platform management interfaces (IPMI) that record memory faults. Review the System Event Log (SEL) for specific memory error codes, including:
Correctable Error (CE) Logging Limit Reached: Indicates a degraded DIMM cell requiring proactive replacement.
Uncorrectable Multi-Bit Error (UE): Points to a hardware failure that stops server POST routines.
An in-depth empirical investigation conducted by researchers at the National Center for Biotechnology Information (NCBI / NIH) demonstrates that DRAM-related faults account for over 37 percent of all server hardware breakdowns in enterprise infrastructure. The study emphasizes that monitoring correctable error patterns enables administrators to predict uncorrectable memory failures with over 84 percent accuracy. Proactive identification of failing modules prevents unexpected downtime and cluster disruptions.
Verify CPU Socket Pin Integrity
Because memory controllers reside directly on the CPU die, damaged, bent, or dirty Land Grid Array (LGA) socket pins often disguise themselves as memory channel failures. If an entire channel fails to recognize compatible DIMMs, inspect the processor socket for physical pin damage or uneven heatsink mounting pressure.
Update Motherboard BIOS and Microcode
Supermicro frequently releases BIOS updates to expand memory support matrices and improve signal margin tolerances. If you install higher-density modules or newer die-revision DRAM, updating your motherboard BIOS ensures complete supermicro ram compatibility.
How RAM Exchange Supports Enterprise Hardware Deployments
Deploying enterprise memory at scale requires consistent component quality, validated compatibility, and full lifecycle support. RAM Exchange provides end-to-end DRAM services designed specifically for IT managers, data centers, and system integrators.
The RAM Exchange Service Ecosystem
Procurement & Testing: Providing DDR3, DDR4, and DDR5 Tier-1 compliant DRAM modules.
Guaranteed Warranty: Backing every memory module with a comprehensive one-year replacement warranty.
ITAD & Asset Recovery: Monetizing decommissioned DIMM inventory and managing certified electronics recycling.
Rigorous Diagnostic and Compatibility Testing
RAM Exchange tests every memory module under real-world server stress conditions. We verify SPD timings, validate thermal tolerances, and confirm Tier-1 compliance across all major enterprise platforms. Every module we ship includes an industry-leading one-year warranty.
Strategic Asset Disposition and Buyback Programs
Upgrading your datacenter infrastructure leaves behind valuable, functional memory modules. Through our certified IT Asset Disposition (ITAD) programs, we help organizations turn decommissioned hardware into working capital. If your team is refreshing memory across server clusters, sell to us to monetize surplus inventory while ensuring responsible e-waste practices.
Best Practice Deployment Checklist for System Builders
Follow this practical checklist when executing a server memory installation:
Check Motherboard Documentation: Review the Supermicro manual for maximum supported memory capacity, approved rank combinations, and population sequence charts.
Match Module Specifications: Ensure uniform memory type (RDIMM, LRDIMM, or 3DS RDIMM), identical speed ratings, uniform voltage, and identical CAS latencies.
Verify Channel Symmetry: Balance identical memory capacities across both CPU sockets in dual-processor systems to avoid non-uniform memory access (NUMA) performance penalties.
Follow Proper Handling Protocols: Use anti-static wrist straps, work on grounded ESD mats, and avoid touching the gold contact pins.
Seat Modules Securely: Press down evenly on both ends of the DIMM until the side latches snap firmly into the locked position.
Execute Diagnostic Burn-In Tests: Run comprehensive memory stress utilities (such as MemTest86+ or Linux-based stressapptest) for at least 12 to 24 hours before moving the server to production.
Conclusion: Achieve Peak Performance with the Right Memory Strategy
Understanding supermicro ram compatibility empowers IT engineers and system builders to design resilient, high-speed enterprise architectures. By respecting memory channel designs, adhering to rank rules, and installing verified enterprise hardware, you protect your infrastructure from costly downtime and unneeded capital replacements.
If you need expert assistance in sourcing verified modules, planning a large-scale server upgrade, or configuring complex memory channels, contact the technical specialists at RAM Exchange today.
Frequently Asked Questions
What happens if I install non-ECC RAM in an enterprise Supermicro motherboard?
Most enterprise Supermicro motherboards require ECC RAM to complete POST. Installing standard unbuffered non-ECC desktop RAM causes the system to halt during startup, trigger memory error beep codes, and report memory initialization failures in the IPMI management console.
Can I install DDR4 and DDR5 memory on the same Supermicro motherboard?
No. DDR4 and DDR5 memory modules use entirely different pin layouts, physical keying notches, signal voltages, and onboard power architectures. A motherboard supports either DDR4 or DDR5 slots, and modules from different generations cannot physically or electrically interoperate.
Why does my Supermicro server show less total memory than installed?
This issue typically stems from incorrect slot population order, a poorly seated DIMM, bent CPU socket pins affecting a specific memory channel, or an outdated BIOS version that cannot address newer high-density DRAM chips. Check your motherboard manual to ensure you populated all blue primary slots first.
Does mixing memory speeds damage my Supermicro motherboard?
Mixing memory speeds does not physically damage the motherboard. However, the integrated memory controller automatically downclocks all modules to match the speed and timings of the slowest installed DIMM. This eliminates the speed benefits of your faster memory modules. To ensure maximum performance and system stability, always install identical modules across all channels.
